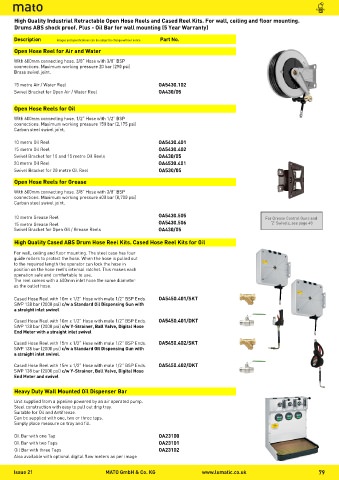

Page 79 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
High Quality Industrial Retractable Open Hose Reels and Cased Reel Kits. For wall, ceiling and floor mounting.
Drums ABS shock proof. Plus - Oil Bar for wall mounting (5 Year Warranty)

Description Images and specifications can be subject to change without notice Part No.
Open Hose Reel for Air and Water

With 600mm connecting hose. 3/8” Hose with 3/8” BSP
connections. Maximum working pressure 20 bar (290 psi)
Brass swivel joint.

15 metre Air / Water Reel OA5430.102
Swivel Bracket for Open Air / Water Reel OA430/05

Open Hose Reels for Oil
With 600mm connecting hose. 1/2” Hose with 1/2” BSP
connections. Maximum working pressure 150 bar (2,175 psi)
Carbon steel swivel joint.
10 metre Oil Reel OA5430.401
15 metre Oil Reel OA5430.402
Swivel Bracket for 10 and 15 metre Oil Reels OA430/05
20 metre Oil Reel OA4530.401
Swivel Bracket for 20 metre Oil Reel OA530/05

Open Hose Reels for Grease
With 600mm connecting hose. 3/8” Hose with 3/8” BSP
connections. Maximum working pressure 600 bar (8,700 psi)
Carbon steel swivel joint.

10 metre Grease Reel OA5430.505 For Grease Control Guns and
15 metre Grease Reel OA5430.506 ‘Z’ Swivels, see page 48
Swivel Bracket for Open Oil / Grease Reels OA430/05
High Quality Cased ABS Drum Hose Reel Kits. Cased Hose Reel Kits for Oil

For wall, ceiling and floor mounting. The steel case has four
guide rollers to protect the hose. When the hose is pulled out
to the required length the operator can lock the hose in
position on the hose reel’s internal ratchet. This makes each
operation safe and comfortable to use.
The reel comes with a 600mm inlet hose the same diameter
as the outlet hose.

Cased Hose Reel with 10m x 1/2” Hose with male 1/2” BSP Ends. OA5450.401/SKT
SWP 138 bar (2000 psi) c/w a Standard Oil Dispensing Gun with
a straight inlet swivel.

Cased Hose Reel with 10m x 1/2” Hose with male 1/2” BSP Ends. OA5450.401/DKT
SWP 138 bar (2000 psi) c/w Y-Strainer, Ball Valve, Digital Hose
End Meter with a straight inlet swivel
Cased Hose Reel with 15m x 1/2” Hose with male 1/2” BSP Ends. OA5450.402/SKT
SWP 138 bar (2000 psi) c/w a Standard Oil Dispensing Gun with
a straight inlet swivel.
Cased Hose Reel with 15m x 1/2” Hose with male 1/2” BSP Ends. OA5450.402/DKT
SWP 138 bar (2000 psi) c/w Y-Strainer, Ball Valve, Digital Hose
End Meter and swivel

Heavy Duty Wall Mounted Oil Dispenser Bar
Unit supplied from a pipeline powered by an air operated pump.
Steel construction with easy to pull out drip tray.
Suitable for Oil and Antifreeze.
Can be supplied with one, two or three taps.
Simply place measure on tray and fill.

Oil Bar with one Tap OA23100
Oil Bar with two Taps OA23101
Oil Bar with three Taps OA23102
Also available with optional digital flow meters as per image

Issue 21 MATO GmbH & Co. KG www.lumatic.co.uk 79
