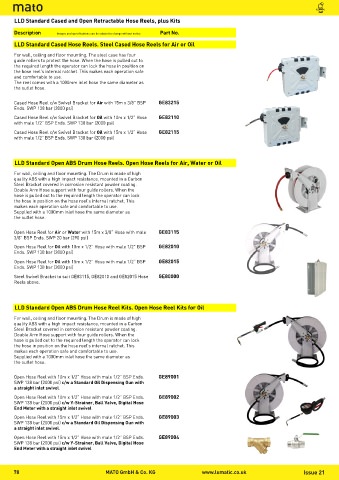

Page 78 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LLD Standard Cased and Open Retractable Hose Reels, plus Kits

Description Images and specifications can be subject to change without notice Part No.
LLD Standard Cased Hose Reels. Steel Cased Hose Reels for Air or Oil
For wall, ceiling and floor mounting. The steel case has four
guide rollers to protect the hose. When the hose is pulled out to LUBRICATION
the required length the operator can lock the hose in position on
the hose reel’s internal ratchet. This makes each operation safe
and comfortable to use.
The reel comes with a 1000mm inlet hose the same diameter as
the outlet hose.

Cased Hose Reel c/w Swivel Bracket for Air with 15m x 3/8” BSP GE83215
Ends. SWP 138 bar (2000 psi)
Cased Hose Reel c/w Swivel Bracket for Oil with 10m x 1/2” Hose GE82110
with male 1/2” BSP Ends. SWP 138 bar (2000 psi)
Cased Hose Reel c/w Swivel Bracket for Oil with 15m x 1/2” Hose GE82115
with male 1/2” BSP Ends. SWP 138 bar (2000 psi)

LLD Standard Open ABS Drum Hose Reels. Open Hose Reels for Air, Water or Oil
For wall, ceiling and floor mounting. The Drum is made of high
quality ABS with a high impact resistance, mounted in a Carbon
Steel Bracket covered in corrosion resistant powder coating.
Double Arm Hose support with four guide rollers. When the
hose is pulled out to the required length the operator can lock
the hose in position on the hose reel’s internal ratchet. This
makes each operation safe and comfortable to use.
Supplied with a 1000mm inlet hose the same diameter as
the outlet hose.

Open Hose Reel for Air or Water with 15m x 3/8” Hose with male GE83115
3/8” BSP Ends. SWP 20 bar (290 psi)
Open Hose Reel for Oil with 10m x 1/2” Hose with male 1/2” BSP GE82010
Ends. SWP 138 bar (2000 psi)
Open Hose Reel for Oil with 15m x 1/2” Hose with male 1/2“ BSP GE82015
Ends. SWP 138 bar (2000 psi)
Steel Swivel Bracket to suit GE83115, GE82010 and GE82015 Hose GE80000
Reels above.

LLD Standard Open ABS Drum Hose Reel Kits. Open Hose Reel Kits for Oil

For wall, ceiling and floor mounting. The Drum is made of high
quality ABS with a high impact resistance, mounted in a Carbon
Steel Bracket covered in corrosion resistant powder coating.
Double Arm Hose support with four guide rollers. When the
hose is pulled out to the required length the operator can lock
the hose in position on the hose reel’s internal ratchet. This
makes each operation safe and comfortable to use.
Supplied with a 1000mm inlet hose the same diameter as
the outlet hose.

Open Hose Reel with 10m x 1/2” Hose with male 1/2” BSP Ends. GE89001
SWP 138 bar (2000 psi) c/w a Standard Oil Dispensing Gun with
a straight inlet swivel.
Open Hose Reel with 10m x 1/2” Hose with male 1/2” BSP Ends. GE89002
SWP 138 bar (2000 psi) c/w Y-Strainer, Ball Valve, Digital Hose
End Meter with a straight inlet swivel
Open Hose Reel with 15m x 1/2” Hose with male 1/2” BSP Ends. GE89003
SWP 138 bar (2000 psi) c/w a Standard Oil Dispensing Gun with
a straight inlet swivel.
Open Hose Reel with 15m x 1/2” Hose with male 1/2” BSP Ends. GE89004
SWP 138 bar (2000 psi) c/w Y-Strainer, Ball Valve, Digital Hose
End Meter with a straight inlet swivel

78 MATO GmbH & Co. KG www.lumatic.co.uk Issue 21
