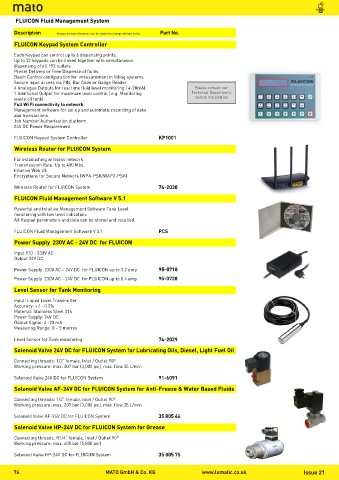

FLUICON Fluid Management System

Description Images and specifications can be subject to change without notice Part No.
FLUICON Keypad System Controller
Each Keypad can control up to 6 dispensing points.
Up to 32 keypads can be linked together with simultaneous
dispensing of all 192 outlets.
Preset Delivery or Free Dispense of fluids.
Batch Control configuration for measurement in filling systems.
Secure input access via PIN, Bar Code or Badge Reader.
6 Analogue Outputs for real time fluid level monitoring ( 4-20mA). Please consult our
1 Additional Output for maximum level control ( e.g. Monitoring Technical Department
waste oil tank). before Installation
Full Wi Fi connectivity to network
Management software for set up and automatic recording of data
and transactions.
Job Number Authorisation platform.
24V DC Power Requirement.
FLUICON Keypad System Controller KP1001

Wireless Router for FLUICON System
For establishing wireless network.
Transmission Rate: Up to 450 Mbs.
Intuitive Web UI.
Encryptions for Secure Network (WPA-PSK/WAP2-PSK)
Wireless Router for FLUICON System 74-2030
FLUICON Fluid Management Software V 5.1

Powerful and Intuitive Management Software Tank Level
monitoring with low level indication.
All Keypad parameters and data can be stored and recalled.

FLUICON Fluid Management Software V 5.1 PCS
Power Supply 230V AC - 24V DC for FLUICON

Input 110 - 230V AC
Output 24V DC
Power Supply 230V AC - 24V DC for FLUICON up to 3.2 amp 95-0718
Power Supply 230V AC - 24V DC for FLUICON up to 8.4 amp 95-0728
Level Sensor for Tank Monitoring

Input: Liquid Level Transmitter
Accuracy: + / - 0.2%
Material: Stainless Steel 316
Power Supply: 24V DC
Output Signal: 4 -20 mA
Measuring Range: 0 – 5 metres

Level Sensor for Tank monitoring 74-2029
Solenoid Valve 24V DC for FLUICON System for Lubricating Oils, Diesel, Light Fuel Oil

Connecting threads: 1/2“ female, Inlet / Outlet 90°
Working pressure: max. 207 bar (3,000 psi), max. flow 35 L/min
Solenoid Valve 24V DC for FLUICON System 91-6091
Solenoid Valve AF-24V DC for FLUICON System for Anti-Freeze & Water Based Fluids

Connecting threads: 1/2“ female, Inlet / Outlet 90°

Working pressure: max. 207 bar (3,000 psi), max. flow 35 L/min
Solenoid Valve AF-24V DC for FLUICON System 35 805 44

Solenoid Valve HP-24V DC for FLUICON System for Grease
Connecting threads: R1/4“ female, Inlet / Outlet 90°

Working pressure: max. 400 bar (5,800 psi)
Solenoid Valve HP-24V DC for FLUICON System 35 805 75
