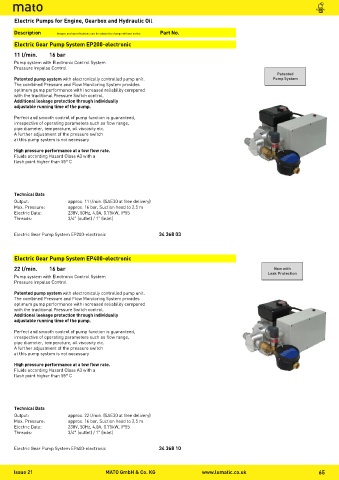

Page 65 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Electric Pumps for Engine, Gearbox and Hydraulic Oil

Description Images and specifications can be subject to change without notice Part No.
Electric Gear Pump System EP200-electronic
11 l/min. 16 bar
Pump system with Electronic Control System
Pressure Impulse Control
Patented
Patented pump system with electronically controlled pump unit. Pump System
The combined Pressure and Flow Monitoring System provides
optimum pump performance with increased reliability compared
with the traditional Pressure Switch control.
Additional leakage protection through individually
adjustable running time of the pump.

Perfect and smooth control of pump function is guaranteed,
irrespective of operating parameters such as flow range,
pipe diameter, temperature, oil viscosity etc.
A further adjustment of the pressure switch
at this pump system is not necessary
High pressure performance at a low flow rate.
Fluids according Hazard Class A3 with a
flash point higher than 55° C

Technical Data
Output: approx. 11 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 16 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.75kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)

Electric Gear Pump System EP200-electronic 34 368 03

Electric Gear Pump System EP400-electronic
22 l/min. 16 bar New with
Pump system with Electronic Control System Leak Protection
Pressure Impulse Control
Patented pump system with electronically controlled pump unit.
The combined Pressure and Flow Monitoring System provides
optimum pump performance with increased reliability compared
with the traditional Pressure Switch control.
Additional leakage protection through individually
adjustable running time of the pump.

Perfect and smooth control of pump function is guaranteed,
irrespective of operating parameters such as flow range,
pipe diameter, temperature, oil viscosity etc.
A further adjustment of the pressure switch
at this pump system is not necessary
High pressure performance at a low flow rate.
Fluids according Hazard Class A3 with a
flash point higher than 55° C

Technical Data
Output: approx. 22 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 16 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.75kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)

Electric Gear Pump System EP400-electronic 34 368 10
