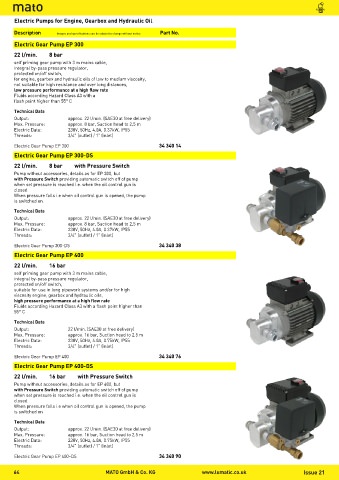

Page 64 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Electric Pumps for Engine, Gearbox and Hydraulic Oil

Description Images and specifications can be subject to change without notice Part No.
Electric Gear Pump EP 300
22 l/min. 8 bar
self priming gear pump with 3 m mains cable,
integral by-pass pressure regulator,
protected on/off switch,
for engine, gearbox and hydraulic oils of low to medium viscosity,
not suitable for high resistance and over long distances,
low pressure performance at a high flow rate
Fluids according Hazard Class A3 with a
flash point higher than 55° C

Technical Data
Output: approx. 22 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 8 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.37kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)
Electric Gear Pump EP 300 34 340 14
Electric Gear Pump EP 300-DS
22 l/min. 8 bar with Pressure Switch
Pump without accessories, details as for EP 300, but
with Pressure Switch providing automatic switch off of pump
when set pressure is reached i.e. when the oil control gun is
closed.
When pressure falls i.e when oil control gun is opened, the pump
is switched on.
Technical Data
Output: approx. 22 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 8 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.37kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)
Electric Gear Pump 300-DS 34 340 38
Electric Gear Pump EP 400
22 l/min. 16 bar
self priming gear pump with 3 m mains cable,
integral by-pass pressure regulator,
protected on/off switch,
suitable for use in long pipework systems and/or for high
viscosity engine, gearbox and hydraulic oils,
high pressure performance at a high flow rate
Fluids according Hazard Class A3 with a flash point higher than
55° C
Technical Data
Output: 22 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 16 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.75kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)
Electric Gear Pump EP 400 34 340 76
Electric Gear Pump EP 400-DS

22 l/min. 16 bar with Pressure Switch
Pump without accessories, details as for EP 400, but
with Pressure Switch providing automatic switch off of pump
when set pressure is reached i.e. when the oil control gun is
closed.
When pressure falls i.e when oil control gun is opened, the pump
is switched on
Technical Data
Output: approx. 22 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 16 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.75kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)
Electric Gear Pump EP 400-DS 34 340 90

64 MATO GmbH & Co. KG www.lumatic.co.uk Issue 21
