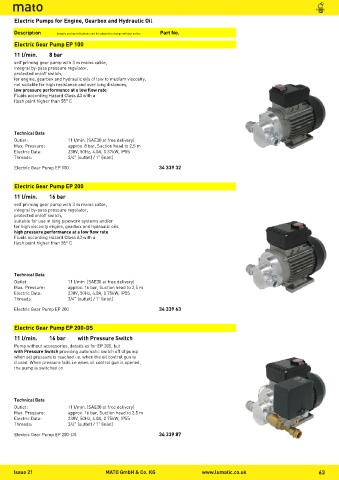

P. 63

LUBRICATION
Electric Pumps for Engine, Gearbox and Hydraulic Oil

Description Images and specifications can be subject to change without notice Part No.
Electric Gear Pump EP 100
11 l/min. 8 bar
self priming gear pump with 3 m mains cable,
integral by-pass pressure regulator,
protected on/off switch,
for engine, gearbox and hydraulic oils of low to medium viscosity,
not suitable for high resistance and over long distances,
low pressure performance at a low flow rate
Fluids according Hazard Class A3 with a
flash point higher than 55° C

Technical Data
Outlet: 11 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 8 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.37kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)
Electric Gear Pump EP 100 34 339 32

Electric Gear Pump EP 200
11 l/min. 16 bar
self priming gear pump with 3 m mains cable,
integral by-pass pressure regulator,
protected on/off switch,
suitable for use in long pipework systems and/or
for high viscosity engine, gearbox and hydraulic oils
high pressure performance at a low flow rate
Fluids according Hazard Class A3 with a
flash point higher than 55° C

Technical Data
Outlet: 11 l/min. (SAE30 at free delivery)
Max. Pressure: approx. 16 bar, Suction head to 2,5 m
Electric Data: 230V, 50Hz, 4.0A, 0.75kW, IP55
Threads: 3/4" (outlet) / 1" (inlet)
Electric Gear Pump EP 200 34 339 63

Electric Gear Pump EP 200-DS
11 l/min. 16 bar with Pressure Switch
Pump without accessories, details as for EP 200, but
with Pressure Switch providing automatic switch off of pump
when set pressure is reached i.e. when the oil control gun is
closed. When pressure falls i.e when oil control gun is opened,
the pump is switched on

Issue 21 MATO GmbH & Co. KG www.lumatic.co.uk 63
