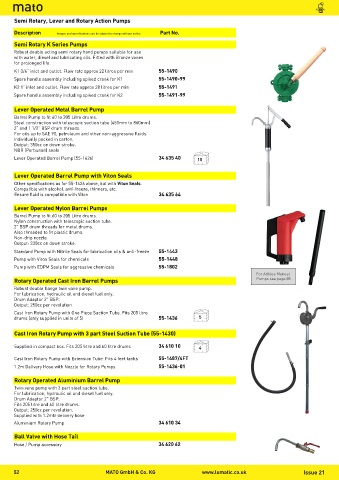

Page 52 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Semi Rotary, Lever and Rotary Action Pumps

Description Images and specifications can be subject to change without notice Part No.
Semi Rotary K Series Pumps
Robust double acting semi rotary hand pumps suitable for use
with water, diesel and lubricating oils. Fitted with Bronze vanes
for prolonged life.
K1 3/4” inlet and outlet. Flow rate approx 22 litres per min 55-1490
Spare handle assembly including spiked crank for K1 55-1490-99
K2 1” inlet and outlet. Flow rate approx 28 litres per min 55-1491
Spare handle assembly including spiked crank for K2 55-1491-99

Lever Operated Metal Barrel Pump
Barrel Pump to fit 60 to 205 Litre drums.
Steel construction with telescopic suction tube (450mm to 860mm)
2” and 1 1/2” BSP drum threads.
For oils up to SAE 90, petroleum and other non-aggressive fluids.
Individually packed in carton.
Output: 350cc on down stroke.
NBR (Perbunan) seals
Lever Operated Barrel Pump (55-1426) 34 635 40 10

Lever Operated Barrel Pump with Viton Seals
Other specifications as for 55-1426 above, but with Viton Seals.
Compatible with alcohol, anti-freeze, thinners, etc.
Ensure fluid is compatible with Viton 34 635 64

Lever Operated Nylon Barrel Pumps
Barrel Pump to fit 60 to 205 Litre drums.
Nylon construction with telescopic suction tube.
2” BSP drum threads for metal drums.
Also threaded to fit plastic drums.
Non-drip nozzle.
Output: 330cc on down stroke.
Standard Pump with Nitrile Seals for lubrication oils & anti-freeze 55-1443
Pump with Viton Seals for chemicals 55-1448
Pump with EDPM Seals for aggressive chemicals 55-1802
For Adblue Manual
Rotary Operated Cast Iron Barrel Pumps Pumps see page 88
Robust double flange twin vane pump.
For lubrication, hydraulic oil and diesel fuel only.
Drum Adaptor 2” BSP.
Output: 250cc per revolution
Cast Iron Rotary Pump with One Piece Suction Tube. Fits 205 litre
drums (only supplied in units of 5) 55-1436 5

Cast Iron Rotary Pump with 3 part Steel Suction Tube (55-1430)

Supplied in compact box. Fits 205 litre and 60 litre drums 34 610 10 4

Cast Iron Rotary Pump with Extension Tube. Fits 4 feet tanks 55-1487/4FT
1.2m Delivery Hose with Nozzle for Rotary Pumps 55-1436-01
Rotary Operated Aluminium Barrel Pump
Twin vane pump with 3 part steel suction tube.
For lubrication, hydraulic oil and diesel fuel only.
Drum Adaptor 2” BSP.
Fits 205 litre and 60 litre drums.
Output: 250cc per revolution.
Supplied with 1.2mtr delivery hose
Aluminium Rotary Pump 34 610 34

Ball Valve with Hose Tail
Hose / Pump accessory 34 620 62
