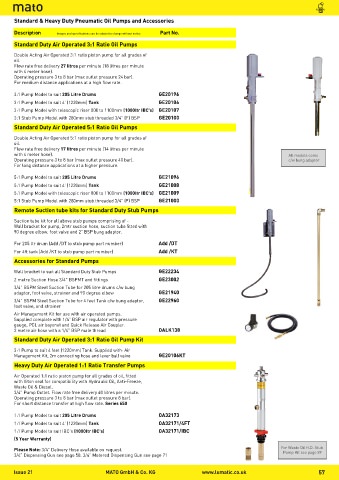

Page 57 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Standard & Heavy Duty Pneumatic Oil Pumps and Accessories

Description Images and specifications can be subject to change without notice Part No.
Standard Duty Air Operated 3:1 Ratio Oil Pumps
Double Acting Air Operated 3:1 ratio piston pump for all grades of
oil.
Flow rate free delivery 27 litres per minute (18 litres per minute
with 4 meter hose).
Operating pressure 3 to 8 bar (max outlet pressure 24 bar).
For medium distance applications at a high flow rate.

3:1 Pump Model to suit 205 Litre Drums GE20196
3:1 Pump Model to suit 4' (1220mm) Tank GE20106
3:1 Pump Model with telescopic riser 800 to 1100mm (1000ltr IBC's) GE20107
3:1 Stub Pump Model with 280mm stub threaded 3/4" (F) BSP GE20100
Standard Duty Air Operated 5:1 Ratio Oil Pumps
Double Acting Air Operated 5:1 ratio piston pump for all grades of
oil.
Flow rate free delivery 17 litres per minute (14 litres per minute
with 4 meter hose). All models come
Operating pressure 3 to 8 bar (max outlet pressure 40 bar). c/w bung adaptor
For long distance applications at a higher pressure.

5:1 Pump Model to suit 205 Litre Drums GE21096
5:1 Pump Model to suit 4' (1220mm) Tank GE21008
5:1 Pump Model with telescopic riser 800 to 1100mm (1000ltr IBC's) GE21009
5:1 Stub Pump Model with 280mm stub threaded 3/4" (F) BSP GE21000
Remote Suction tube kits for Standard Duty Stub Pumps

Suction tube kit for all above stub pumps comprising of -
Wall bracket for pump, 2mtr suction hose, suction tube fitted with
90 degree elbow, foot valve and 2" BSP bung adaptor.

For 205 ltr drum (Add /DT to stub pump part number) Add /DT
For 4ft tank (Add /KT to stub pump part number) Add /KT
Accessories for Standard Pumps

Wall bracket to suit all Standard Duty Stub Pumps GE22234
2 metre Suction Hose 3/4” BSPMT end fittings GE23002
3/4” BSPM Steel Suction Tube for 205 litre drums c/w bung
adaptor, foot valve, strainer and 90 degree elbow GE21940
3/4” BSPM Steel Suction Tube for 4 feet Tank c/w bung adaptor, GE22960
foot valve, and strainer
Air Management Kit for use with air operated pumps.
Supplied complete with 1/4” BSP air regulator with pressure
gauge, PCL air bayonet and Quick Release Air Coupler.
2 metre air hose with a 1/4” BSP male thread OALK138
Standard Duty Air Operated 3:1 Ratio Oil Pump Kit

3:1 Pump to suit 4 feet (1220mm) Tank. Supplied with: Air
Management Kit, 2m connecting hose and lever ball valve GE20106KT
Heavy Duty Air Operated 1:1 Ratio Transfer Pumps

Air Operated 1:1 ratio piston pump for all grades of oil, fitted
with Viton seal for compatibility with Hydraulic Oil, Anti-Freeze,
Waste Oil & Diesel.
3/4” Pump Outlet. Flow rate free delivery 40 litres per minute.
Operating pressure 3 to 8 bar (max outlet pressure 8 bar).
For short distance transfer at high flow rate. Series 650
1:1 Pump Model to suit 205 Litre Drums OA32173
1:1 Pump Model to suit 4' (1220mm) Tank OA32171/4FT
1:1 Pump Model to suit IBC’s (1000ltr IBC's) OA32171/IBC
(5 Year Warranty)

Please Note: 3/4” Delivery Hose available on request. For Waste Oil H.D. Stub
3/4” Dispensing Gun see page 58. 3/4” Metered Dispensing Gun see page 71 Pump Kit see page 89
