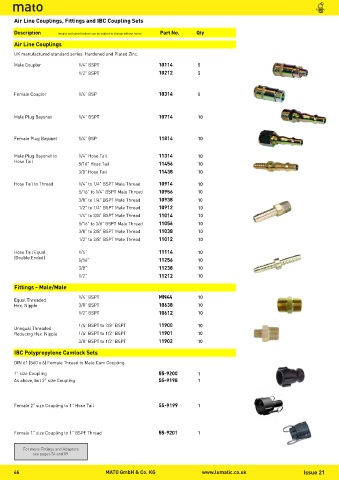

Page 46 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Air Line Couplings, Fittings and IBC Coupling Sets

Description Images and specifications can be subject to change without notice Part No. Qty
Air Line Couplings
UK manufactured standard series. Hardened and Plated Zinc.
Male Coupler 1/4” BSPT 10114 5
1/2” BSPT 10212 5

Female Coupler 1/4” BSP 10314 5

Male Plug Bayonet 1/4” BSPT 10714 10

Female Plug Bayonet 1/4” BSP 11814 10

Male Plug Bayonet to 1/4” Hose Tail 11314 10
Hose Tail 5/16” Hose Tail 11456 10
3/8” Hose Tail 11438 10

Hose Tail to Thread 1/4” to 1/4” BSPT Male Thread 10914 10
5/16” to 1/4” BSPT Male Thread 10956 10
3/8” to 1/4” BSPT Male Thread 10938 10
1/2” to 1/4” BSPT Male Thread 10912 10
1/4” to 3/8” BSPT Male Thread 11014 10
5/16” to 3/8” BSPT Male Thread 11056 10
3/8” to 3/8” BSPT Male Thread 11038 10
1/2” to 3/8” BSPT Male Thread 11012 10
Hose Tail Equal 1/4” 11114 10
(Double Ended) 5/16” 11256 10
3/8” 11238 10
1/2” 11212 10
Fittings - Male/Male
1/4” BSPT MN44 10
Equal Threaded
Hex. Nipple 3/8” BSPT 10638 10
1/2” BSPT 10612 10
1/4” BSPT to 3/8” BSPT 11900 10
Unequal Threaded
Reducing Hex. Nipple 1/4” BSPT to 1/2” BSPT 11901 10
3/8” BSPT to 1/2” BSPT 11902 10
IBC Polypropylene Camlock Sets

DIN 61 (S60 x 6) Female Thread to Male Cam Coupling.
1” size Coupling 55-9200 1
As above, but 2” size Coupling 55-9198 1

Female 2” size Coupling to 1” Hose Tail 55-9199 1

Female 1” size Coupling to 1” BSPF Thread 55-9201 1

For more Fittings and Adaptors
see pages 54 and 89
