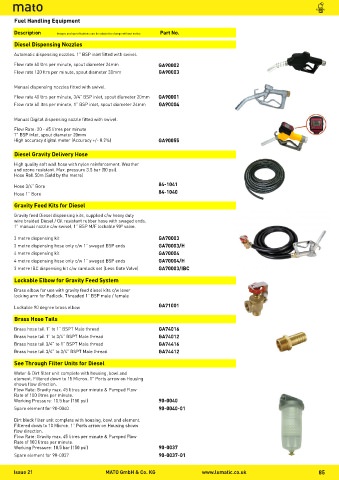

Page 85 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Fuel Handling Equipment

Description Images and specifications can be subject to change without notice Part No.
Diesel Dispensing Nozzles
Automatic dispensing nozzles. 1” BSP inlet fitted with swivel.
Flow rate 60 ltrs per minute, spout diameter 24mm GA90002
Flow rate 120 ltrs per minute, spout diameter 30mm GA90003

Manual dispensing nozzles fitted with swivel.
Flow rate 40 ltrs per minute, 3/4” BSP inlet, spout diameter 20mm GA90001
Flow rate 60 ltrs per minute, 1” BSP inlet, spout diameter 24mm GA90004

Manual Digital dispensing nozzle fitted with swivel.

Flow Rate: 20 - 65 litres per minute
1” BSP inlet, spout diameter 20mm
High accuracy digital meter (Accuracy +/- 0.2%) GA90055

Diesel Gravity Delivery Hose
High quality soft wall hose with nylon reinforcement. Weather
and ozone resistant. Max. pressure 3.5 bar (50 psi).
Hose Roll 50m (Sold by the metre)
Hose 3/4” Bore 84-1041
Hose 1” Bore 84-1040
Gravity Feed Kits for Diesel
Gravity feed Diesel dispensing kits, supplied c/w heavy duty
wire braided Diesel / Oil resistant rubber hose with swaged ends.
1” manual nozzle c/w swivel, 1” BSP M/F lockable 90º valve.
3 metre dispensing kit GA70003
3 metre dispensing hose only c/w 1” swaged BSP ends GA70003/H
4 metre dispensing kit GA70004
4 metre dispensing hose only c/w 1” swaged BSP ends GA70004/H
3 metre IBC dispensing kit c/w camlock set (Less Gate Valve) GA70003/IBC
Lockable Elbow for Gravity Feed System

Brass elbow for use with gravity feed diesel kits c/w lever
locking arm for Padlock. Threaded 1” BSP male / female

Lockable 90 degree brass elbow GA71001
Brass Hose Tails
Brass hose tail 1” to 1” BSPT Male thread GA74016
Brass hose tail 1” to 3/4” BSPT Male thread GA74012
Brass hose tail 3/4” to 1” BSPT Male thread GA74416
Brass hose tail 3/4” to 3/4” BSPT Male thread GA74412

See Through Filter Units for Diesel
Water & Dirt filter unit complete with housing, bowl and
element. Filtered down to 15 Micron. 1” Ports arrow on Housing
shows flow direction.
Flow Rate: Gravity max. 45 litres per minute & Pumped Flow
Rate of 100 litres per minute.
Working Pressure: 10.5 bar (150 psi) 90-0040
Spare element for 90-0040 90-0040-01
Dirt block filter unit complete with housing, bowl and element.
Filtered down to 10 Micron. 1” Ports arrow on Housing shows
flow direction.
Flow Rate: Gravity max. 45 litres per minute & Pumped Flow
Rate of 100 litres per minute.
Working Pressure: 10.5 bar (150 psi) 90-0037
Spare element for 90-0037 90-0037-01

Issue 21 MATO GmbH & Co. KG www.lumatic.co.uk 85
