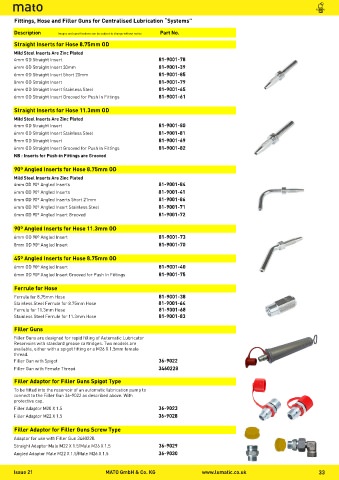

P. 33
LUBRICATION
Fittings, Hose and Filler Guns for Centralised Lubrication “Systems”
Description Images and specifications can be subject to change without notice Part No.
Straight Inserts for Hose 8.75mm OD
Mild Steel Inserts Are Zinc Plated
4mm OD Straight Insert 81-9001-78
6mm OD Straight Insert 30mm 81-9001-39
6mm OD Straight Insert Short 20mm 81-9001-85
8mm OD Straight Insert 81-9001-79
6mm OD Straight Insert Stainless Steel 81-9001-65
6mm OD Straight Insert Grooved for Push In Fittings 81-9001-61
Straight Inserts for Hose 11.3mm OD
Mild Steel Inserts Are Zinc Plated
6mm OD Straight Insert 81-9001-80
6mm OD Straight Insert Stainless Steel 81-9001-81
8mm OD Straight Insert 81-9001-69
6mm OD Straight Insert Grooved for Push In Fittings 81-9001-82
NB : Inserts for Push-in Fittings are Grooved
90º Angled Inserts for Hose 8.75mm OD
Mild Steel Inserts Are Zinc Plated
4mm OD 90º Angled Inserts 81-9001-84
6mm OD 90º Angled Inserts 81-9001-41
6mm OD 90º Angled Inserts Short 21mm 81-9001-86
6mm OD 90º Angled Insert Stainless Steel 81-9001-71
6mm OD 90º Angled Insert Grooved 81-9001-72
90º Angled Inserts for Hose 11.3mm OD
6mm OD 90º Angled Insert 81-9001-73
8mm OD 90º Angled Insert 81-9001-70
45º Angled Inserts for Hose 8.75mm OD
6mm OD 90º Angled Insert 81-9001-40
6mm OD 90º Angled Insert Grooved for Push In Fittings 81-9001-75
Ferrule for Hose
Ferrule for 8.75mm Hose 81-9001-38
Stainless Steel Ferrule for 8.75mm Hose 81-9001-64
Ferrule for 11.3mm Hose 81-9001-68
Stainless Steel Ferrule for 11.3mm Hose 81-9001-83
Filler Guns
Filler Guns are designed for rapid filling of Automatic Lubricator
Reservoirs with standard grease cartridges. Two models are
available, either with a spigot fitting or a M26 X 1.5mm female
thread.
Filler Gun with Spigot 36-9022
Filler Gun with Female Thread 3460228
Filler Adaptor for Filler Guns Spigot Type
To be fitted into the reservoir of an automatic lubrication pump to
connect to the Filler Gun 36-9022 as described above. With
protective cap.
Filler Adaptor M20 X 1.5 36-9023
Filler Adaptor M22 X 1.5 36-9028
Filler Adaptor for Filler Guns Screw Type
Adaptor for use with Filler Gun 3460228.
Straight Adaptor Male M22 X 1.5/Male M26 X 1.5 36-9029
Angled Adaptor Male M22 X 1.5/Male M26 X 1.5 36-9030
Issue 21 MATO GmbH & Co. KG www.lumatic.co.uk 33
