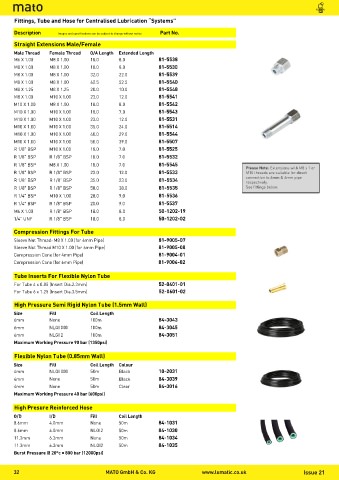

Page 32 - Lumatic Ltd, Lubrication Equipment And Fluid Handling Products

LUBRICATION
Fittings, Tube and Hose for Centralised Lubrication “Systems”

Description Images and specifications can be subject to change without notice Part No.
Straight Extensions Male/Female
Male Thread Female Thread O/A Length Extended Length
M6 X 1.00 M8 X 1.00 18.0 8.0 81-5538
M8 X 1.00 M8 X 1.00 18.0 8.0 81-5530
M8 X 1.00 M8 X 1.00 32.0 22.0 81-5539
M8 X 1.00 M8 X 1.00 62.5 52.5 81-5540
M8 X 1.25 M8 X 1.25 20.0 10.0 81-5548
M8 X 1.00 M10 X 1.00 23.0 12.0 81-5541
M10 X 1.00 M8 X 1.00 18.0 8.0 81-5542
M10 X 1.00 M10 X 1.00 18.0 7.0 81-5543
M10 X 1.00 M10 X 1.00 23.0 12.0 81-5531
M10 X 1.00 M10 X 1.00 35.0 24.0 81-5514
M10 X 1.00 M10 X 1.00 40.0 29.0 81-5544
M10 X 1.00 M10 X 1.00 50.0 39.0 81-5507
R 1/8" BSP M10 X 1.00 18.0 7.0 81-5525
R 1/8" BSP R 1/8" BSP 18.0 7.0 81-5532
R 1/8" BSP M8 X 1.00 18.0 7.0 81-5545 Please Note: Extensions with M8 x 1 or
R 1/8" BSP R 1/8" BSP 23.0 12.0 81-5533 M10 threads are suitable for direct
R 1/8" BSP R 1/8" BSP 35.0 23.0 81-5534 connection to 4mm & 6mm pipe
respectively.
R 1/8" BSP R 1/8" BSP 50.0 38.0 81-5535 See fittings below:
R 1/4" BSP M10 X 1.00 20.0 9.0 81-5536
R 1/4" BSP R 1/8" BSP 20.0 9.0 81-5537
M6 X 1.00 R 1/8" BSP 18.0 8.0 50-1202-19
1/4" UNF R 1/8" BSP 18.0 8.0 50-1202-02

Compression Fittings For Tube
Sleeve Nut Thread: M8 X 1.00 (for 4mm Pipe) 81-9005-07
Sleeve Nut Thread M10 X 1.00 (for 6mm Pipe) 81-9005-08
Compression Cone (for 4mm Pipe) 81-9004-01
Compression Cone (for 6mm Pipe) 81-9004-02

Tube Inserts For Flexible Nylon Tube
For Tube 4 x 0.85 (Insert Dia.2.3mm) 52-0401-01
For Tube 6 x 1.25 (Insert Dia.3.5mm) 52-0601-02

High Pressure Semi Rigid Nylon Tube (1.5mm Wall)
Size Fill Coil Length
6mm None 100m 84-3043
6mm NLGI 000 100m 84-3045
6mm NLGI 2 100m 84-3051
Maximum Working Pressure 90 bar (1350psi)

Flexible Nylon Tube (0.85mm Wall)
Size Fill Coil Length Colour
4mm NLGI 000 50m Black 10-2031
4mm None 50m Black 84-3039
4mm None 50m Clear 84-3016
Maximum Working Pressure 40 bar (600psi)
High Presure Reinforced Hose
O/D I/D Fill Coil Length
8.6mm 4.0mm None 50m 84-1031
8.6mm 4.0mm NLGI2 50m 84-1030
11.3mm 6.3mm None 50m 84-1034
11.3mm 6.3mm NLGI2 50m 84-1035
Burst Pressure @ 20ºc = 800 bar (12000psi)
