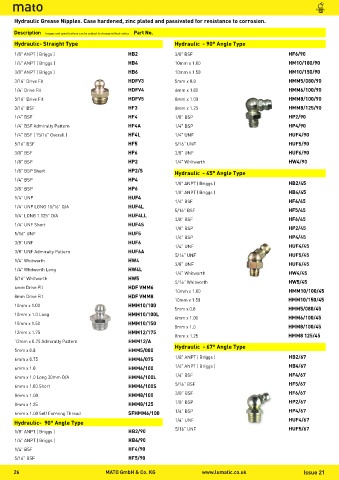

LUBRICATION
Hydraulic Grease Nipples. Case hardened, zinc plated and passivated for resistance to corrosion.
Description Images and specifications can be subject to change without notice Part No.
Hydraulic- Straight Type Hydraulic - 90° Angle Type

1/8" ANPT ( Briggs ) HB2 3/8" BSF HF6/90
1/4" ANPT ( Briggs ) HB4 10mm x 1.00 HM10/100/90
3/8" ANPT ( Briggs ) HB6 10mm x 1.50 HM10/150/90
3/16" Drive Fit HDFV3 5mm x 0.8 HMM5/080/90
1/4" Drive Fit HDFV4 6mm x 1.00 HMM6/100/90
5/16" Drive Fit HDFV5 8mm x 1.00 HMM8/100/90
3/16" BSF HF3 8mm x 1.25 HMM8/125/90
1/4" BSF HF4 1/8” BSP HP2/90
1/4" BSF Admiralty Pattern HF4A 1/4" BSP HP4/90
1/4" BSF ( 15/16” Overall ) HF4L 1/4" UNF HUF4/90
5/16” BSF HF5 5/16” UNF HUF5/90
3/8” BSF HF6 3/8” UNF HUF6/90
1/8" BSP HP2 1/4" Whitworth HW4/90
1/8” BSP Short HP2/S Hydraulic - 45° Angle Type

1/4” BSP HP4 1/8" ANPT ( Briggs ) HB2/45
3/8” BSP HP6 1/8" ANPT ( Briggs ) HB4/45
1/4” UNF HUF4 1/4” BSF HF4/45
1/4” UNF LONG 15/16” O/A HUF4L 5/16” BSF HF5/45
1/4” LONG 1.125” O/A HUF4LL 3/8” BSF HF6/45
1/4” UNF Short HUF4S 1/8” BSP HP2/45
5/16” UNF HUF5 1/4” BSP HP4/45
3/8” UNF HUF6 1/4” UNF HUF4/45
3/8” UNF Admiralty Pattern HUF6A 5/16” UNF HUF5/45
1/4" Whitworth HW4 3/8” UNF HUF6/45
1/4” Whitworth Long HW4L 1/4” Whitworth HW4/45
5/16” Whitworth HW5 5/16” Whitworth HW5/45
6mm Drive Fit HDF VMM6 10mm x 1.00 HMM10/100/45
8mm Drive Fit HDF VMM8 10mm x 1.50 HMM10/150/45
10mm x 1.00 HMM10/100 5mm x 0.8 HMM5/080/45
10mm x 1.0 Long HMM10/100L 6mm x 1.00 HMM6/100/45
10mm x 1.50 HMM10/150 8mm x 1.0 HMM8/100/45
12mm x 1.75 HMM12/175 8mm x 1.25 HMM8 125/45
12mm x 0.75 Admiralty Pattern HMM12/A

5mm x 0.8 HMM5/080 Hydraulic - 67° Angle Type
6mm x 0.75 HMM6/075 1/8" ANPT ( Briggs ) HB2/67
6mm x 1.0 HMM6/100 1/4" ANPT ( Briggs ) HB4/67
6mm x 1.0 Long 30mm O/A HMM6/100L 1/4” BSF HF4/67
6mm x 1.00 Short HMM6/100S 5/16” BSF HF5/67
8mm x 1.00 HMM8/100 3/8” BSF HF6/67
8mm x 1.25 HMM8/125 1/8” BSP HP2/67
6mm x 1.00 Self Forming Thread SFHMM6/100 1/4” BSP HP4/67
Hydraulic- 90° Angle Type 1/4” UNF HUF4/67
1/8" ANPT ( Briggs ) HB2/90 5/16” UNF HUF5/67
1/4" ANPT ( Briggs ) HB4/90
1/4" BSF HF4/90
5/16" BSF HF5/90
