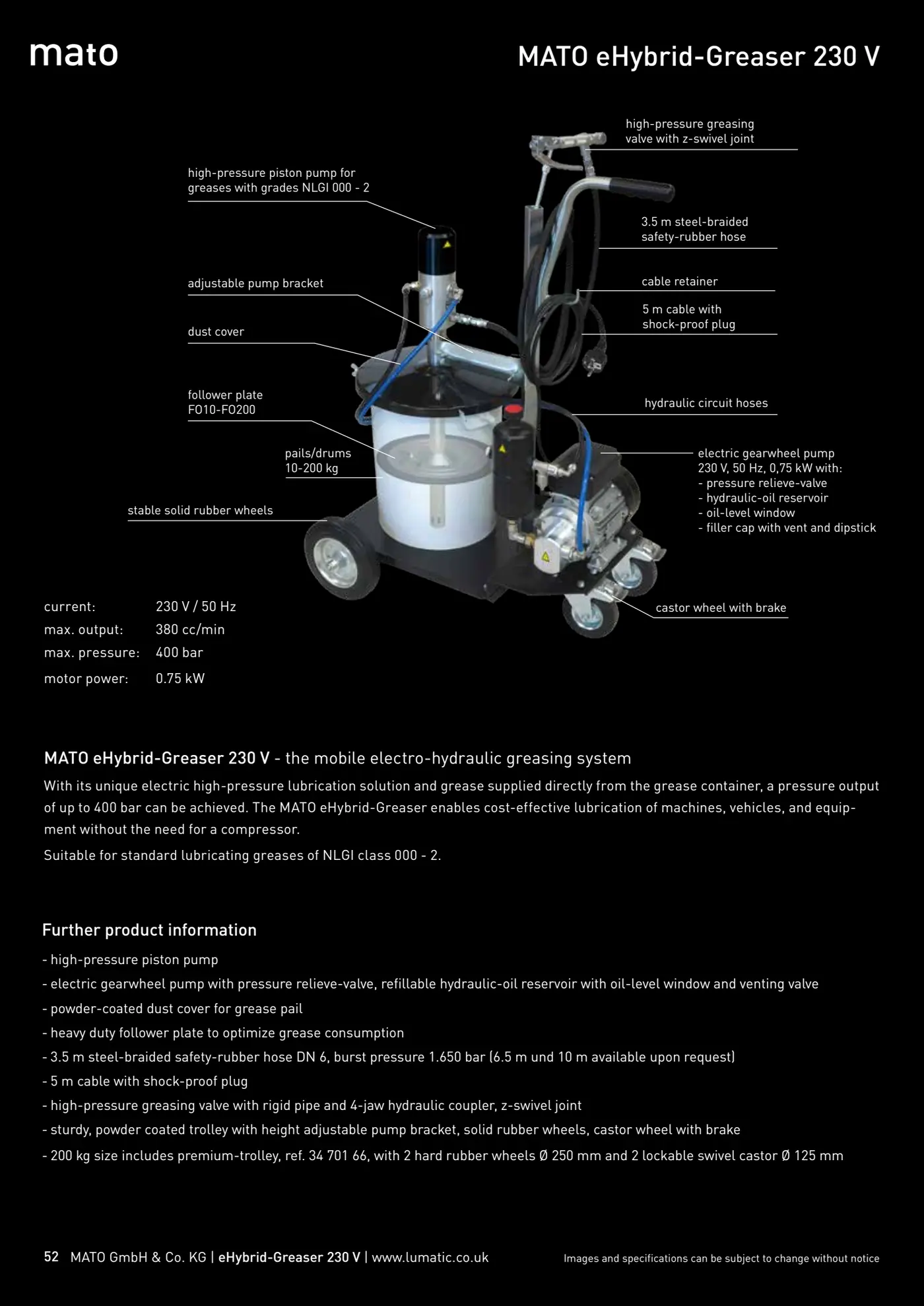

MATO eHybrid-Greaser 230 V

• high-pressure greasing valve with z-swivel joint

high-pressure piston pump for greases with grades NLGI 000 - 2

• 3.5 m steel-braided safety-rubber hose
• cable retainer
• adjustable pump bracket
• 5 m cable with shock-proof plug
• dust cover
• follower plate FO10-FO200
• hydraulic circuit hoses

electric gearwheel pump 230 V, 50 Hz, 0,75 kW with: - pressure relieve-valve - hydraulic-oil reservoir - oil-level window - filler cap with vent and dipstick

• pails/drums 10-200 kg
• stable solid rubber wheels
• current:
• 230 V / 50 Hz
• castor wheel with brake
• max. output: 380 cc/min
• max. pressure: 400 bar
• motor power: 0.75 kW

MATO eHybrid-Greaser 230 V - the mobile electro-hydraulic greasing system

With its unique electric high-pressure lubrication solution and grease supplied directly from the grease container, a pressure output of up to 400 bar can be achieved. The MATO eHybrid-Greaser enables cost-effective lubrication of machines, vehicles, and equipment without the need for a compressor.

Suitable for standard lubricating greases of NLGI class 000 - 2.

Further product information

• high-pressure piston pump
• electric gearwheel pump with pressure relieve-valve, refillable hydraulic-oil reservoir with oil-level window and venting valve
• powder-coated dust cover for grease pail
• heavy duty follower plate to optimize grease consumption
• 3.5 m steel-braided safety-rubber hose DN 6, burst pressure 1.650 bar (6.5 m und 10 m available upon request)
• 5 m cable with shock-proof plug
• high-pressure greasing valve with rigid pipe and 4-jaw hydraulic coupler, z-swivel joint
• sturdy, powder coated trolley with height adjustable pump bracket, solid rubber wheels, castor wheel with brake
• 200 kg size includes premium-trolley, ref. 34 701 66, with 2 hard rubber wheels Ø 250 mm and 2 lockable swivel castor Ø 125 mm
